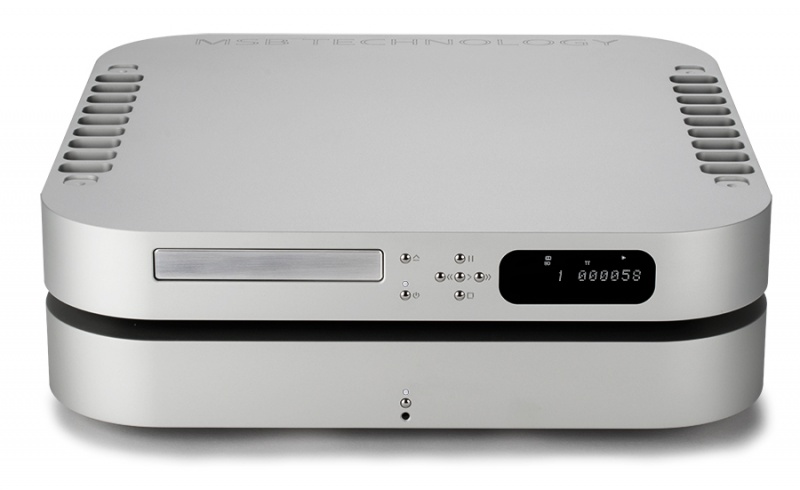

Immersive sound that needs to be heard to be believed. The Reference Transport supports multi-channel DSD, as well as 192kHz/24-bit PCM used in high-resolution lossless formats such as AIFF, ALAC, APE, FLAC, WAV. In addition, the Reference Transport supports the latest in surround formats, such as Dolby TrueHD, DTS-HD, Dolby Atmos and DTS:X.

Aluminum Tray

Machined in-house from a solid billet of aluminum, our disc tray is robust and durable with a commanding visual aesthetic.






Diversified Media Support

All of your audio needs in one elegant design. The Reference Transport plays every standard optical disc format, such as 4K UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD, DVD – Audio and CD. Connected USB hard disks and thumb drives are also supported, and have the ability to access content from DLNA servers and SMB shares over the local network.




Best Connection Possible

Our proprietary connection, the Pro ISL interface prioritizes the most efficient aspects of any digital interface, using an infrared laser diode to transmit over a single-mode fiber cable. This enables features like clock sync and error correction, all while obtaining perfect isolation and ensuring the lowest possible jitter.

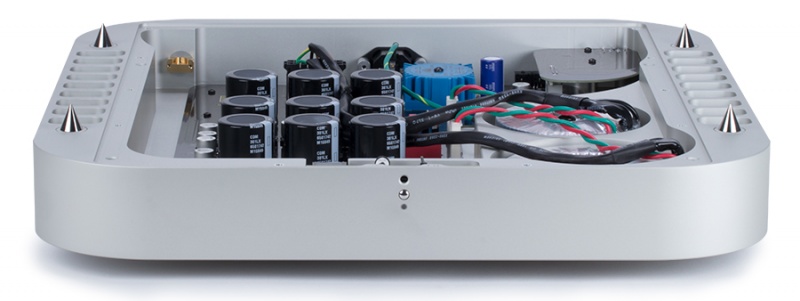

The Transport Powerbase

You can’t underestimate the importance of a clean power supply. A reimagined design paired with the transport reduces the noise floor even further through specialized isolating transformers. We’ve equipped the transport with a single supply for the audio side of the transport, along with an isolated supply for the video side, yielding an unprecedented level of performance.

Anodized Finishes

Available in matte silver and matte black anodized finishes to give your Reference Transport a clean aesthetic. Replaceable foot guards are included to protect the chassis from damage. Any standard M6X1 foot can be installed.





Technical Specifications
Disc Types:
UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

BD Profile:
BD-ROM Version 3.1 Profile 6 (also compatible with BD-ROM Version 2.5 Profile 5)

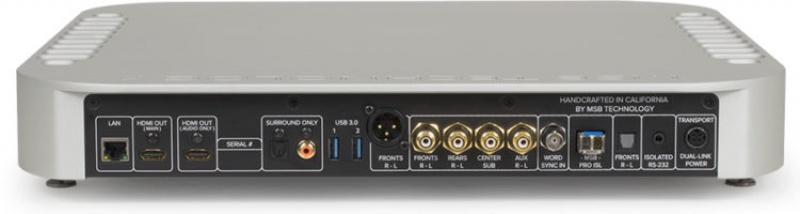

Output:
Primary Outputs - Up to 8ch 192kHz PCM, DSD Support
”Surround Only” Outputs - Coaxial/Optical Audio: up to 2ch/192kHz PCM, Dolby - Digital, DTS.
HDMI Audio: up to 7.1ch/192kHz PCM, up to 5.1ch DSD, Bitstream.
HDMI Video: UHD/1080p24/1080p/1080i/720p/576p/576i/480p/480i, 3D frame-packing 720p/1080p24.

Controls:
Isolated RS-232
IR Remote
7 Buttons

Chassis dimensions:
Width:    17.5 in (444 mm)
Depth:    17.5 in (444 mm)
Chassis Height (Without Feet):    2.2 in (79 mm)
Stack height:    2.85 in (92 mm)
Weight:    28 lbs (12.7 kg)
